Keydom Access Control System
Pedestrian and vehicular access control
KEYDOM is a plug-and-play access control system, fully designed and developed by FAAC, that simplifies the management of pedestrian and vehicular access for both employees and visitors.
Highly scalable, KEYDOM delivers security and flexibility for organisations of all sizes—from small businesses to large enterprises—across a wide range of sectors including transportation, logistics, tourism, healthcare, and public administration.
The KEYDOM application is entirely web-based and can be conveniently configured via any browser on a device connected to the system.
Full scalability for all types of system sizes. Up to 32 doors requires no dedicated PC / Server on site and bigger on-premises solutions of over 4000 doors and 500K users.
KEYDOM is a plug-and-play access control system, fully designed and developed by FAAC, that simplifies the management of pedestrian and vehicular access for both employees and visitors.
Highly scalable, KEYDOM delivers security and flexibility for organisations of all sizes—from small businesses to large enterprises—across a wide range of sectors including transportation, logistics, tourism, healthcare, and public administration.
The KEYDOM application is entirely web-based and can be conveniently configured via any browser on a device connected to the system.
Full scalability for all types of system sizes. Up to 32 doors requires no dedicated PC / Server on site and bigger on-premises solutions of over 4000 doors and 500K users.
WEB BASED
KEYDOM is a fully web-based system. You can configure it quickly and easily via any browser on a device connected to the network.
USER FRIENDLY
The KEYDOM user interface is extremely intuitive — designed to make system configuration simple and accessible, even for non-experts.
EMBEDDED
KEYDOM is a fully integrated system that requires no additional software installation — everything is preinstalled and embedded.
HIGH SCALABILITY
KEYDOM is a highly scalable system, designed to adapt to the specific needs of your organisation as they grow and evolve over time.
Efficiency. Control. Security.
This is KEYDOM.
The KEYDOM access control system is designed for a wide range of applications across diverse sectors and environments.

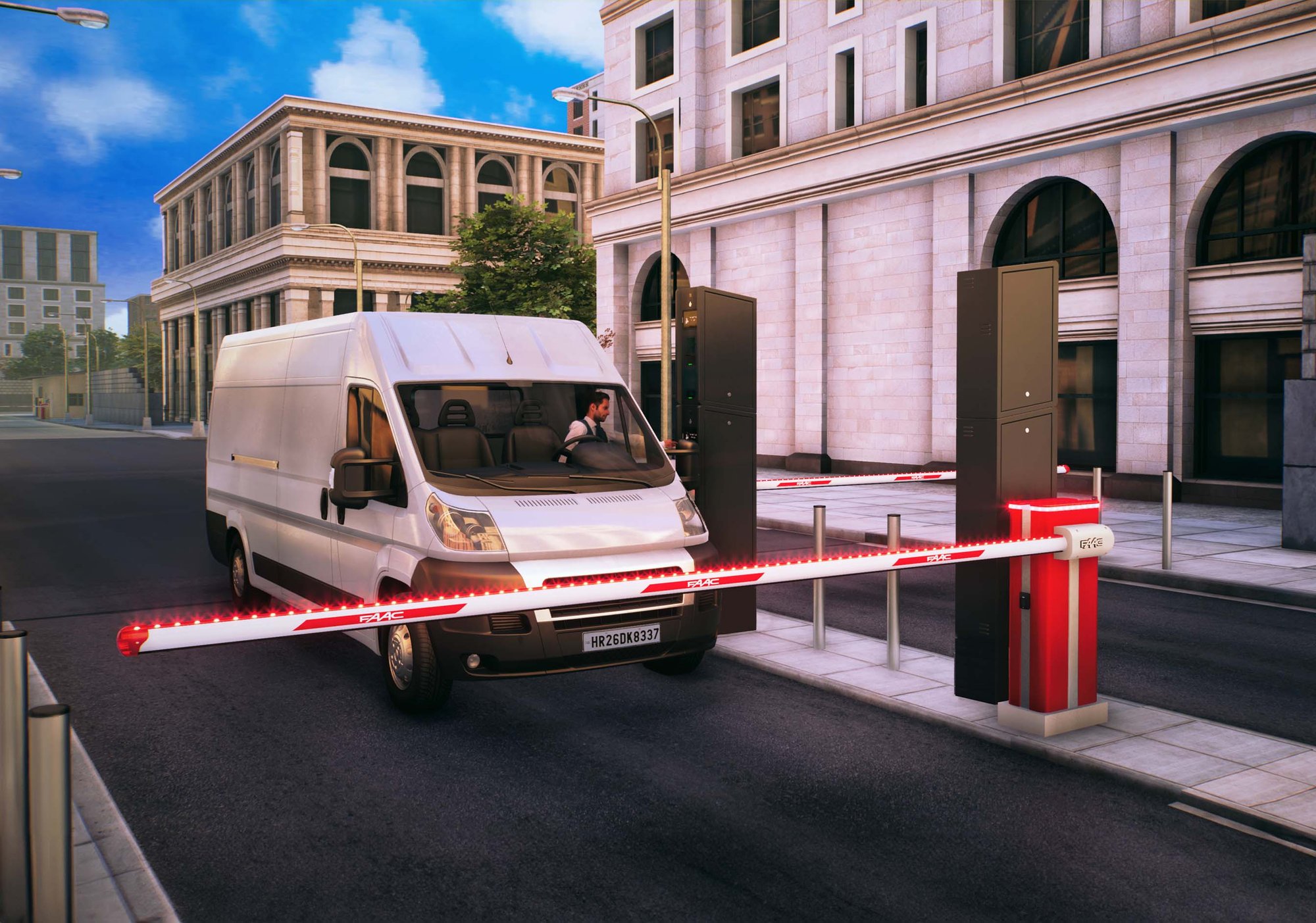

In the transportation and logistics sector, integration with license plate readers and long-range tags enables fast and secure vehicle entry and exit — granting access exclusively to authorized vehicles.
In corporate settings, healthcare facilities, and public institutions, proximity readers make it easy to define multiple access levels within internal areas, ensuring the right permissions for each user.
In hospitality and tourism, proximity readers can be used to grant exclusive access to specific areas and services, limited to authorized guests for the duration of their stay.
System Components

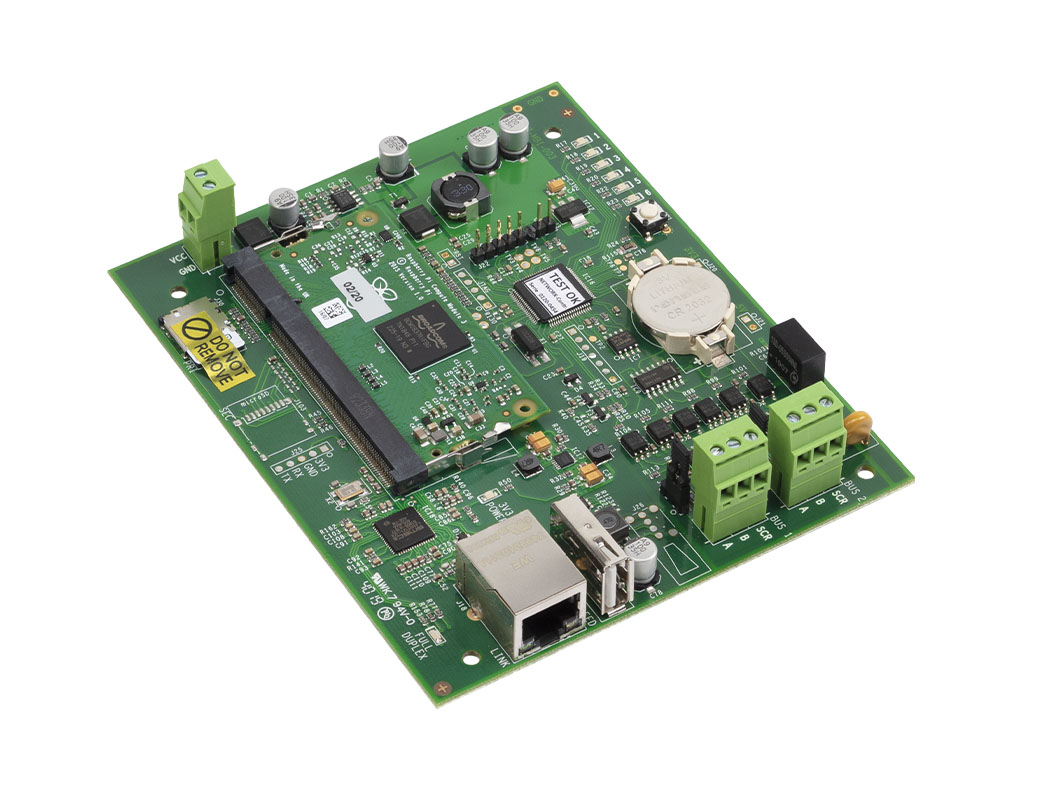

System on Module "SOM" Network Controller with Keydom Software preinstalled - Up to 32 Doors.
NETWORK CONTROLLER
- The Network Controller is the central data concentrator. It utilises a powerful and compact System-On-Module (SOM) as its base. The proprietary Keydom software resides on the unit and is fully configurable via a standard web browser.
- System architecture with embedded software, requires no software installation as it is preinstalled and included in the Network Controller.
- The application is entirely web based and is conveniently configurable via a browser on any device connected to the same network.
- RS485 and LAN ports for maximum flexibility in wiring and possible reuse of existing wiring.
- Manages up to 200,000 users (expandable with Enterprise version)
- "SOM" version manages installations with up to 32 Access Points.
- Enterprise version caters for over 4000 doors and 500,000 users via software and on-premises solution.

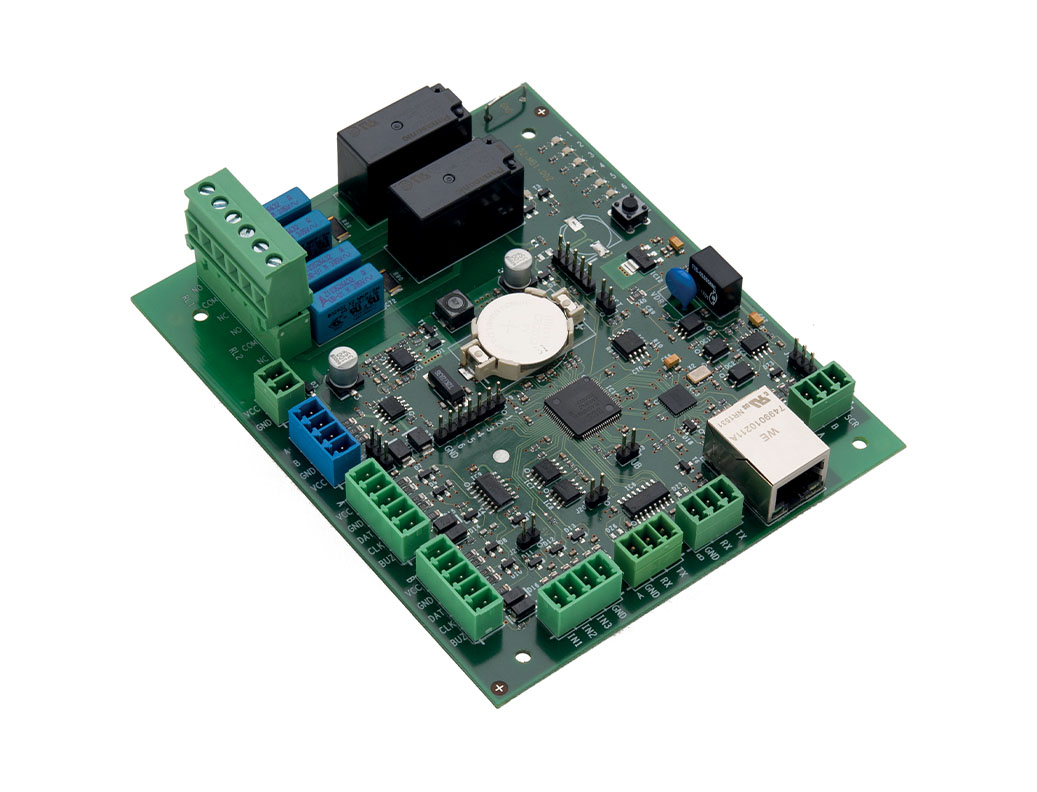

DOOR CONTROLLER for controlling and connecting access points including doors, vehicular and pedestrian gates
DOOR CONTROLLER
- Single central unit for any type of gateway to be controlled (pedestrian or vehicular)
- Manages a bidirectional (entry/exit) pedestrian or vehicular gateway.
- DOOR CONTROLLER gate control unit is designed to be able to realise all gate connections (input/output) in a simplified way by optimising wiring works.
- It manages readers with multiple communication protocols to provide maximum flexibility of choice and extreme scalability of the system
- Features include:
- 2 relay outputs expandable up to 6 outputs with dedicated expansion card
- 3 inputs expandable up to 7 inputs with dedicated expansion card
- Spinet, RS232, Wiegand and Magnetic Stripe ports for connecting any type of reader.
- Manages up to 200,000 users and 8,000 events offline.

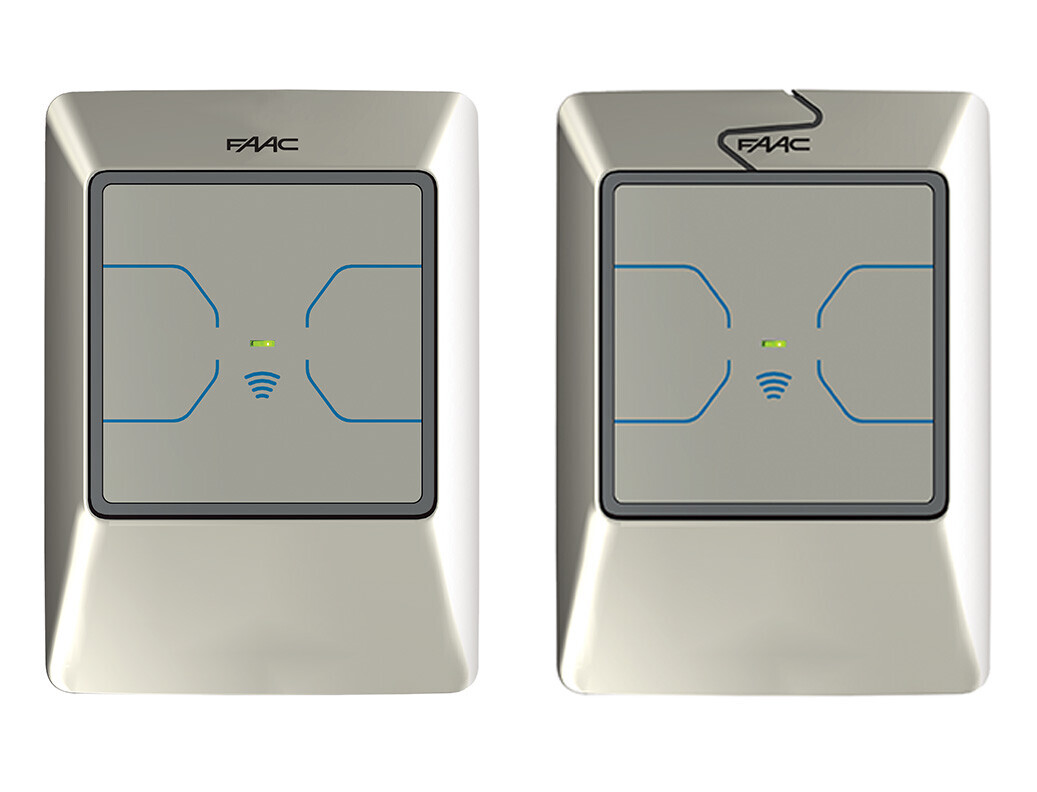

Proximity Reader
XTRR
-
Type: passive proximity
-
Installation: wall-mounted or column-mounted
- Compact, solid and slim design for any architectural context
- Aluminium case and steel cover
- Buzzer and bi-colour LED (red & green)
- Connection with FAAC proprietary SPINET BUS;
- Available in 125 KHz or 13.56MHz MiFare version
- Backlit metal keypad
- IP 54

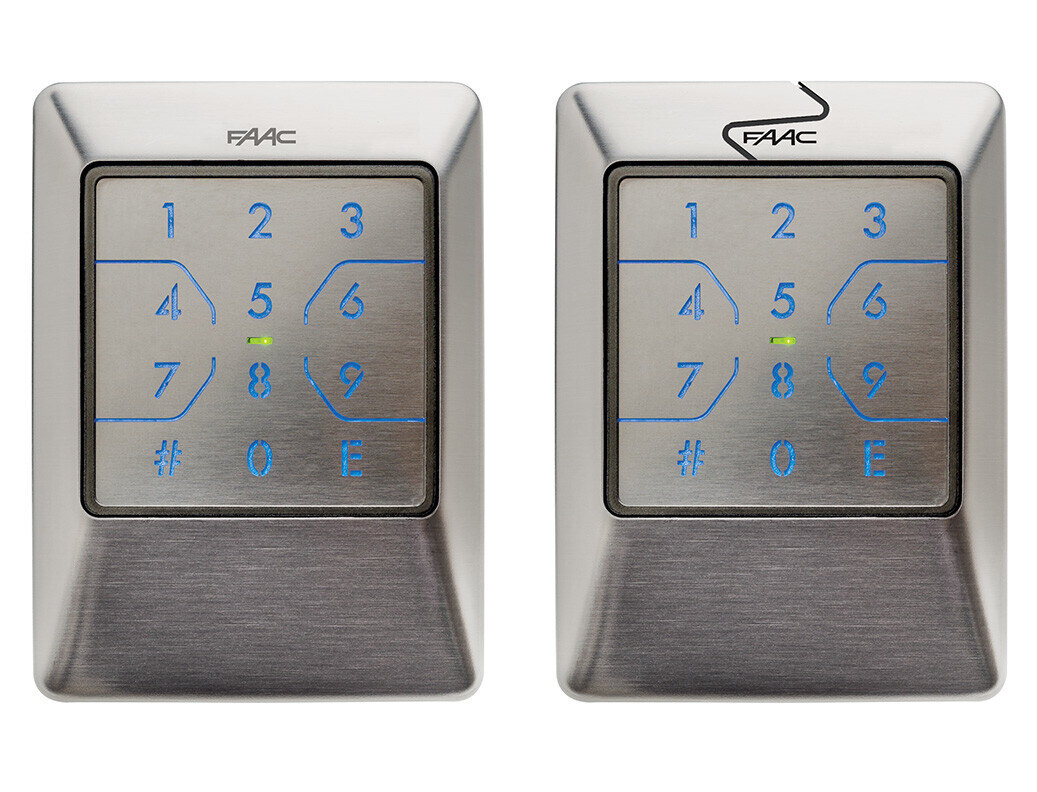

Proximity reader with integrated keypad
XKPR
-
Type: passive proximity + keypad
-
Installation: wall-mounted or column-mounted
- Compact, solid and slim design for any architectural context
- Aluminium case and steel cover
- Buzzer and bi-colour LED (red & green)
- Connection with FAAC proprietary SPINET BUS;
- Available in 125 KHz or 13.56MHz MiFare version
- Backlit metal keypad
- IP 54

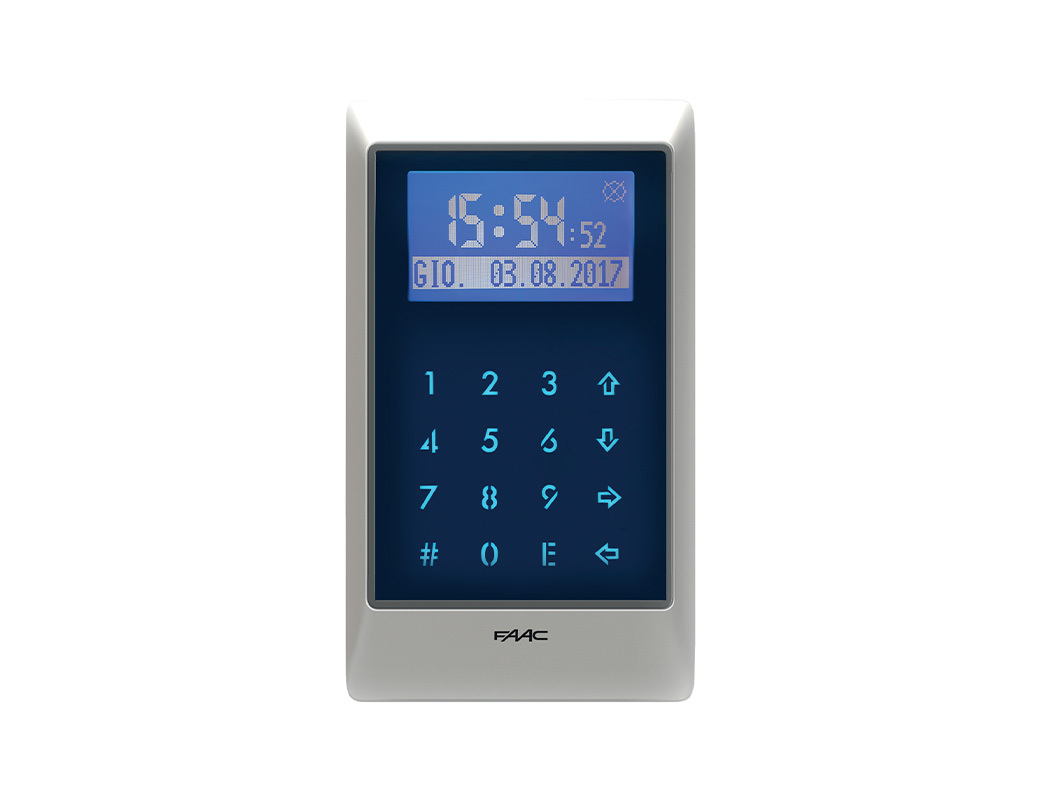

Proximity reader with integrated keypad & Display
XKPRD
-
Type: passive proximity + keypad + display
-
Installation: wall-mounted
- Reads RFID cards and accepts numerical PINs.
- Includes a 3-inch graphic display for info like time, date, and messages.
- Buzzer and bi-colour Led (red & green)
- Connection with FAAC proprietary SPINET BUS;
- Available in 125 KHz or 13.56MHz MiFare version
- Backlit keypad
- IP 54

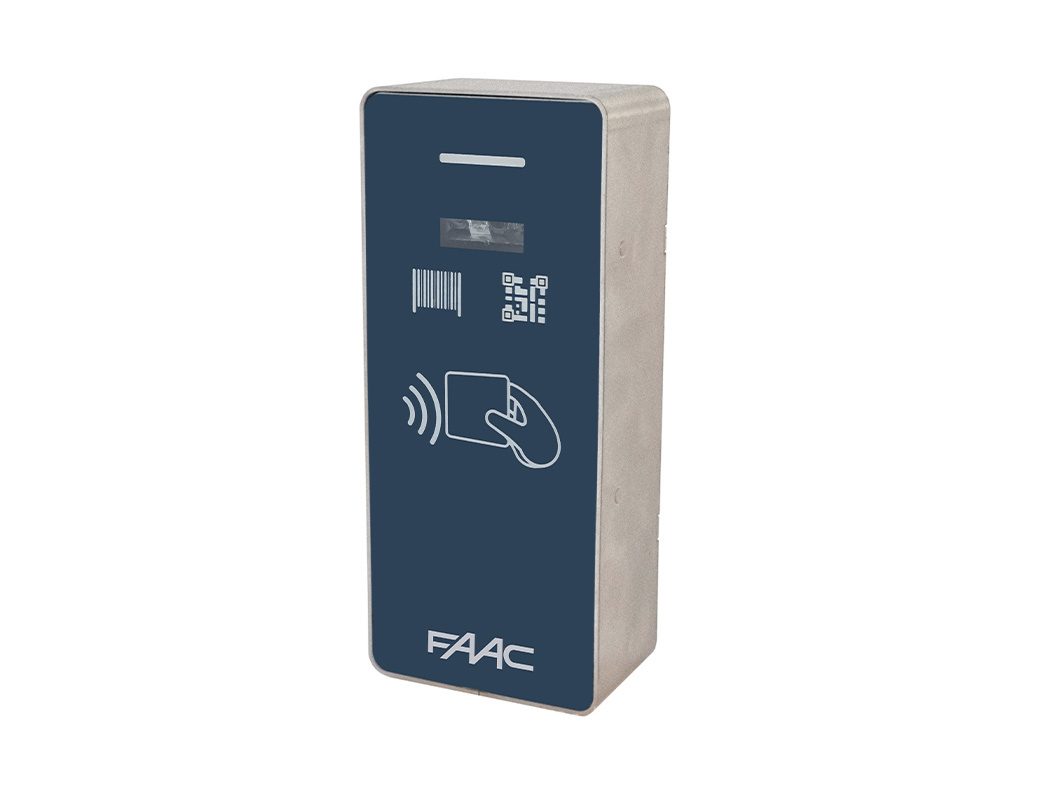

Visitor Reader with PROX, QR & Barcode
XKCP
-
Type: passive proximity + QR +Barcode
-
Installation: wall-mounted or column-mounted
- Outdoor stainless steel body.
- Precise image scanning.
- Digital imaging technology.
- Optimal performance 1D and 2D codes.
- Available in 125 KHz or 13.56MHz MiFare version
- Improved productivity data acquisition.
- Reads bar code from a smartphone
- IP54

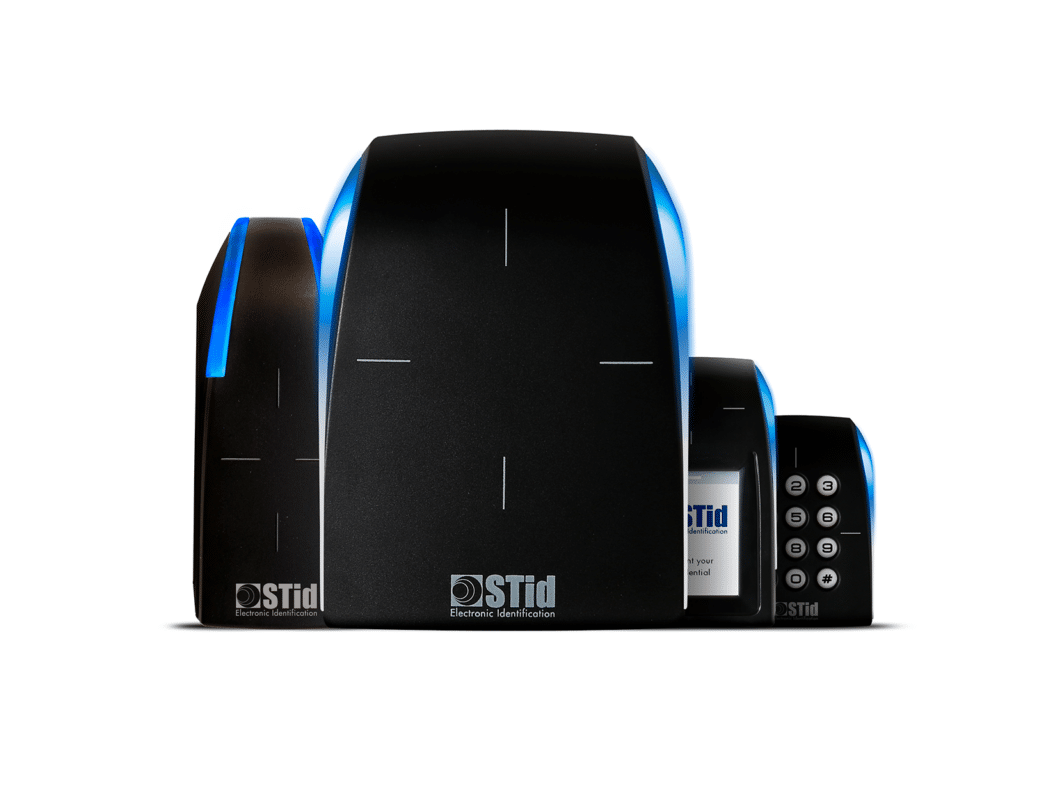

Architect blue range
STID READERS
-
Type: passive proximity + Keypad + Smart Credentials
-
Installation: wall-mounted or column-mounted
- Available as PROX only, PROX + Keypad, Scramble Keypad + Smart Credentials
- Hardened ABS-PC Housing.
- Integrated Buzzer & LED's.
- Multi Format RFID Readers.
- IP65 Rating.
- Custom reader skins available.

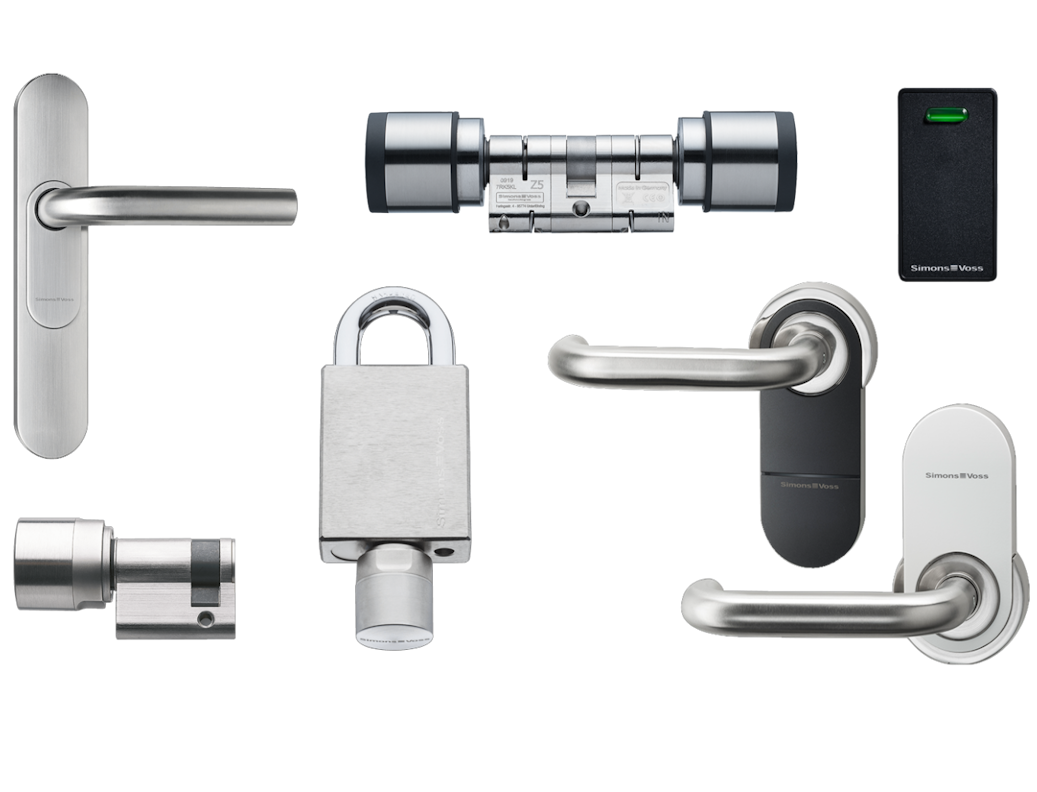

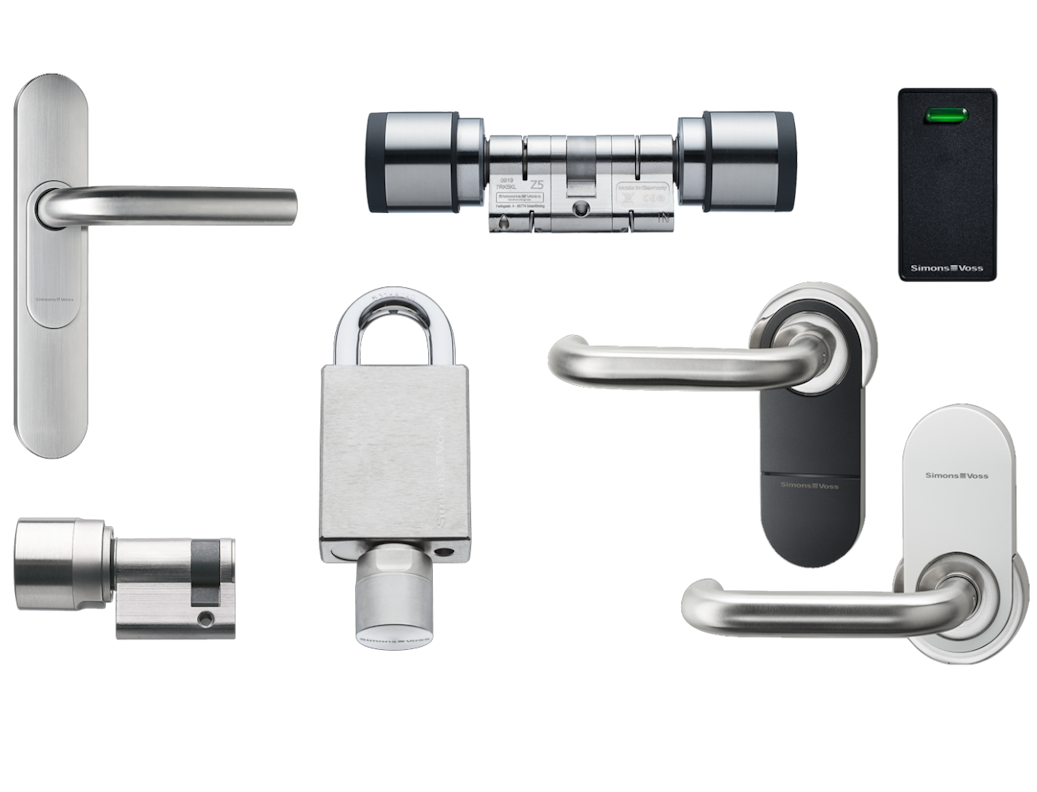

Wireless Access Control Handles
SIMONSVOSS SMART INTEGO
-
Type: passive proximity
-
Installation: Wireless handles for internal & external doors.
- Available as wireless handles, wireless cylinders, wireless padlocks & locker locks.
- Direct integration with FAAC KEYDOM.
- Long battery life.
- Multiple finishes & configurations available.
- Offers EN179 / EN1125 compliance.
