Bollards

J275 2K20 High-Security Bollards

J275 HA 2K20 - Retractable bollard

Performance certified according to PAS 68 and IWA 14-1 standards. Able to withstand impact with a 7500 kg truck driven at 48 km/h in a double unit configuration
Guaranteed for high frequency use
Simplified maintenance (possible with just one person)
Hydraulic control unit integrated in the bollard
“Gentle stop” function to ensure a gentle stop on the low limit switch
Anti-tamper head and protected by a security lock with encrypted key to prevent unauthorized lowering

J275 F 2K20 - Fixed bollard

Power supply and wiring not required
“Shallow Mounted” design: minimum hole depth required
Visually identical to the retractable (HA) models, making it perfect for mixed installations

Type of operator Hydraulic Automatic (J275 HA 2k20)
Fixed (J275 F 2k20)
Height 800 mm

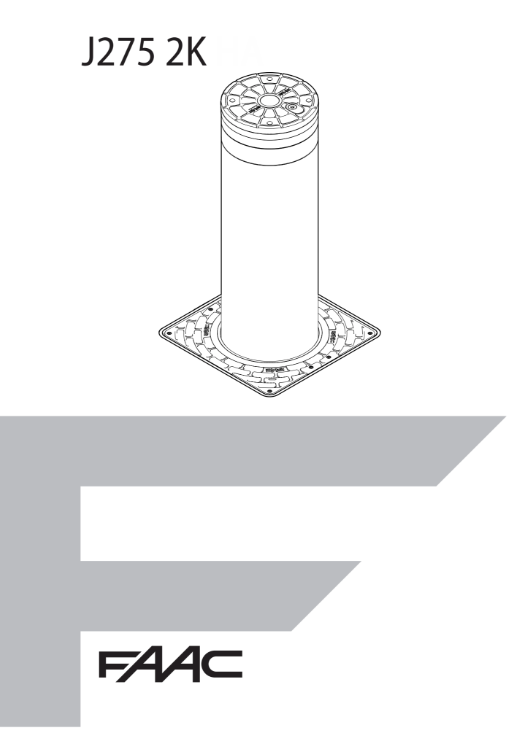

Technical description Download

Focus on J275 2K20 Bollards

Bollards for the perimeter protection of critical areas

Traffic bollards range specifically dedicated to perimeter protection and regulation of vehicular access to restricted areas with special security requirements.

J275 2K20 range is recommended for vehicular access control and perimeter protection in critical areas. Able to arrest a 7.500kg truck driving at 50km/h in dual installation.

Technical information

Product information J275 2K20

01

Technical description

Model	Item code
J275 HA 2K20	116401
J275 HA 2K20 INOX	116431
J275 F 2K20 H800	116421
J275 F 2K20 H800 INOX	116441

Type of operator Hydraulic automatic (J275 HA 2K20) - Fixed (J275 F 2K20)
Cylinder height from ground 800 mm
Cylinder diameter 275 mm
Release device Yes (J275 HA 2K20)
Max power 575 W (J275 HA 2K20)
Break in resistance 673.000 J dual unit (J275 HA 2K20) - 656.000 J (J275 F 2K20)
