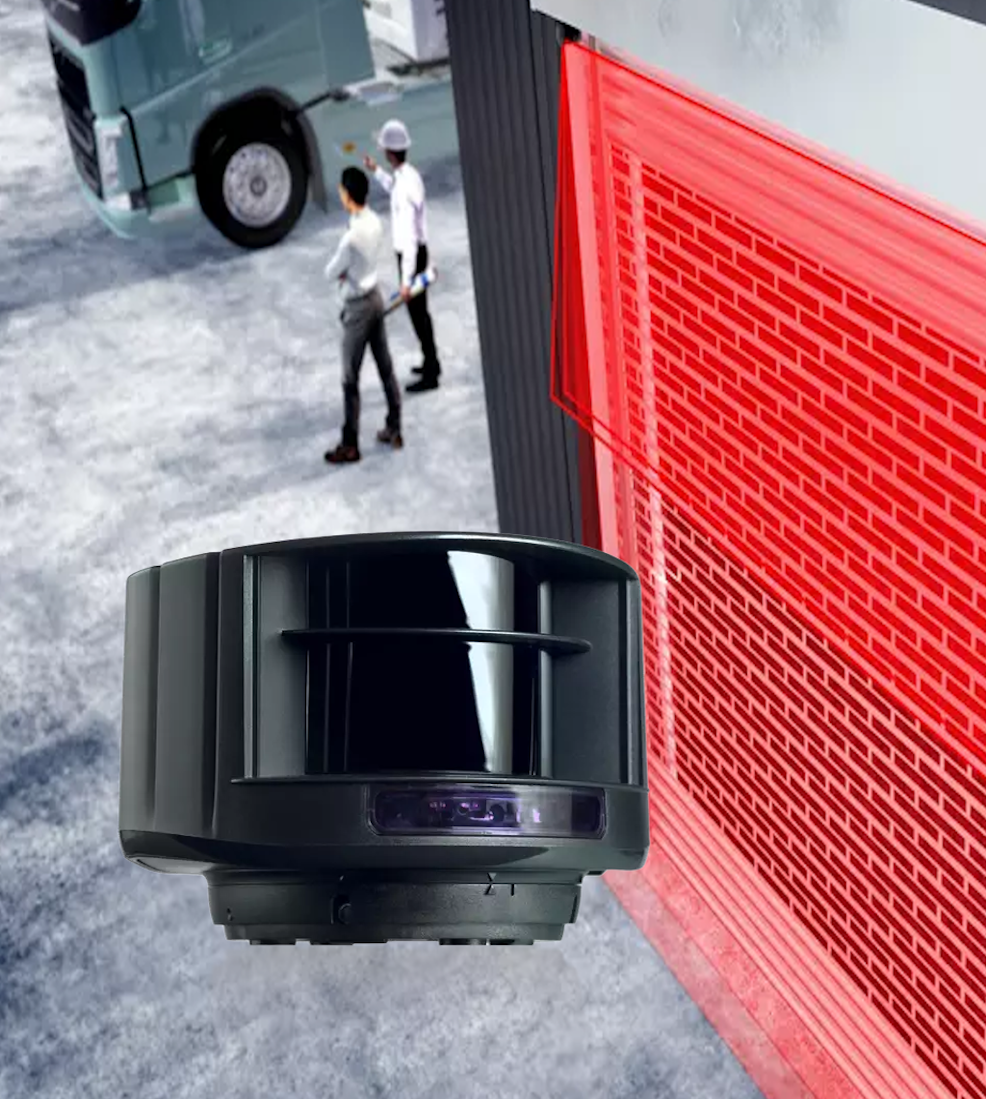

The FAAC XGUARD is a high-performance laser scanner designed to provide advanced safety and activation for automatic barriers, industrial doors, and gates. Using Time-of-Flight (ToF) laser technology, it acts as a sophisticated alternative to traditional induction loops and safety edges. Features include;
Dual Functionality: The XGUARD can simultaneously manage opening activation (motion) and presence detection (safety).
Alternative to Ground Loops: Because it is mounted above ground (on the barrier body or a post), it eliminates the need for expensive roadworks and cutting loops into the tarmac.
Object Recognition: It is designed to detect all types of vehicles—including electric cars, composite motorcycles, and trucks with trailers—while effectively "filtering out" pedestrians to avoid false triggers.
Precise Safety Technology: The device generates four overlapping laser curtains that create a three-dimensional safety zone.
Dynamic Learning: It features an "Auto-Set" or "Teach-in" function, allowing the sensor to learn its environment and ignore stationary objects like walls or fence posts.
Environmental Filtering: The XGUARD is engineered to filter out interference from vibrations, heavy rain, snow, and fog, ensuring reliable operation in harsh Irish weather (IP65 rated).
Depending on your project, there are typically two main versions: XGUARD-H (Horizontal): Specifically optimised for Automatic Barriers. It creates a horizontal safety field to prevent the barrier arm from lowering on a vehicle.
XGUARD-V (Vertical): Used for Industrial Doors and Gates and available in a 5m and 10m variant. It provides a vertical curtain of protection to prevent the door/gate from closing on a person or obstacle.
