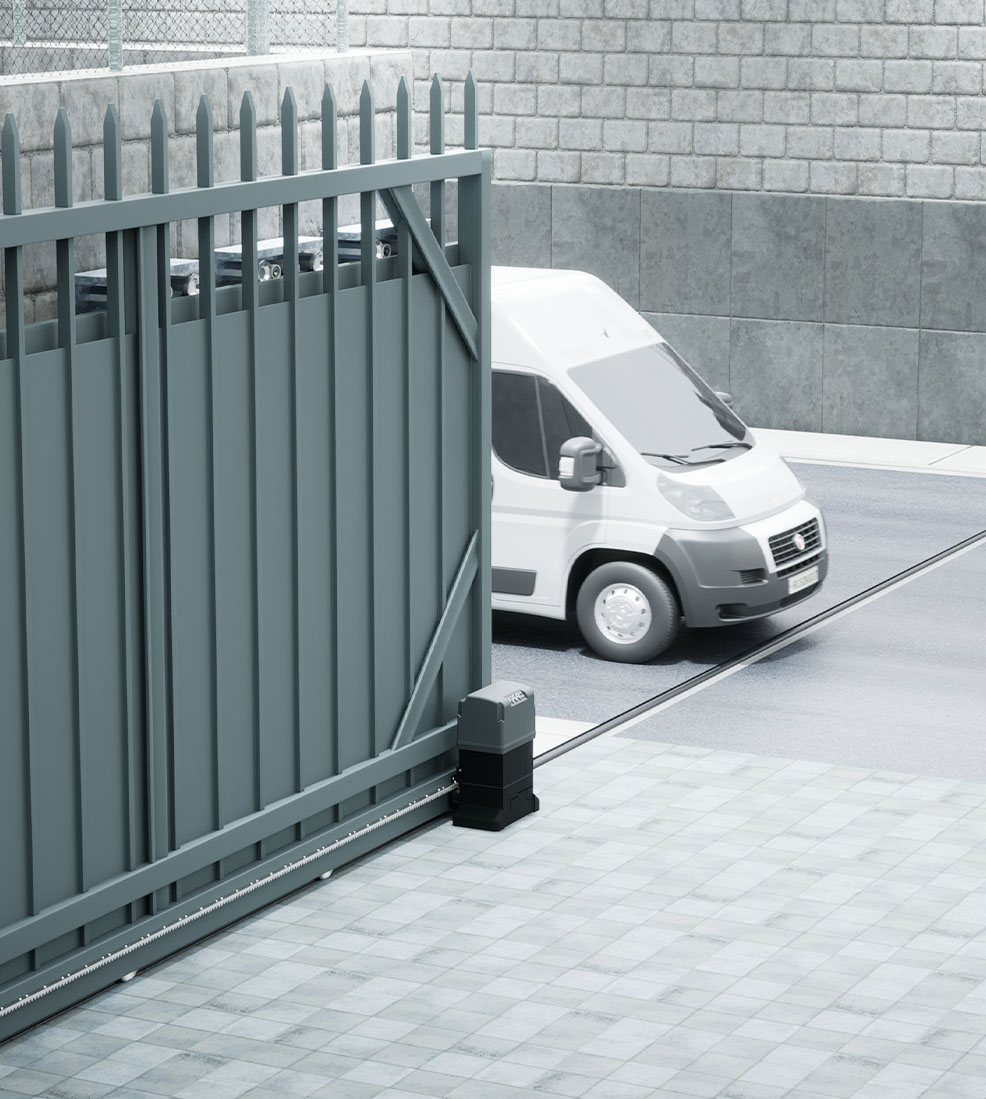

Sliding Gate Automation

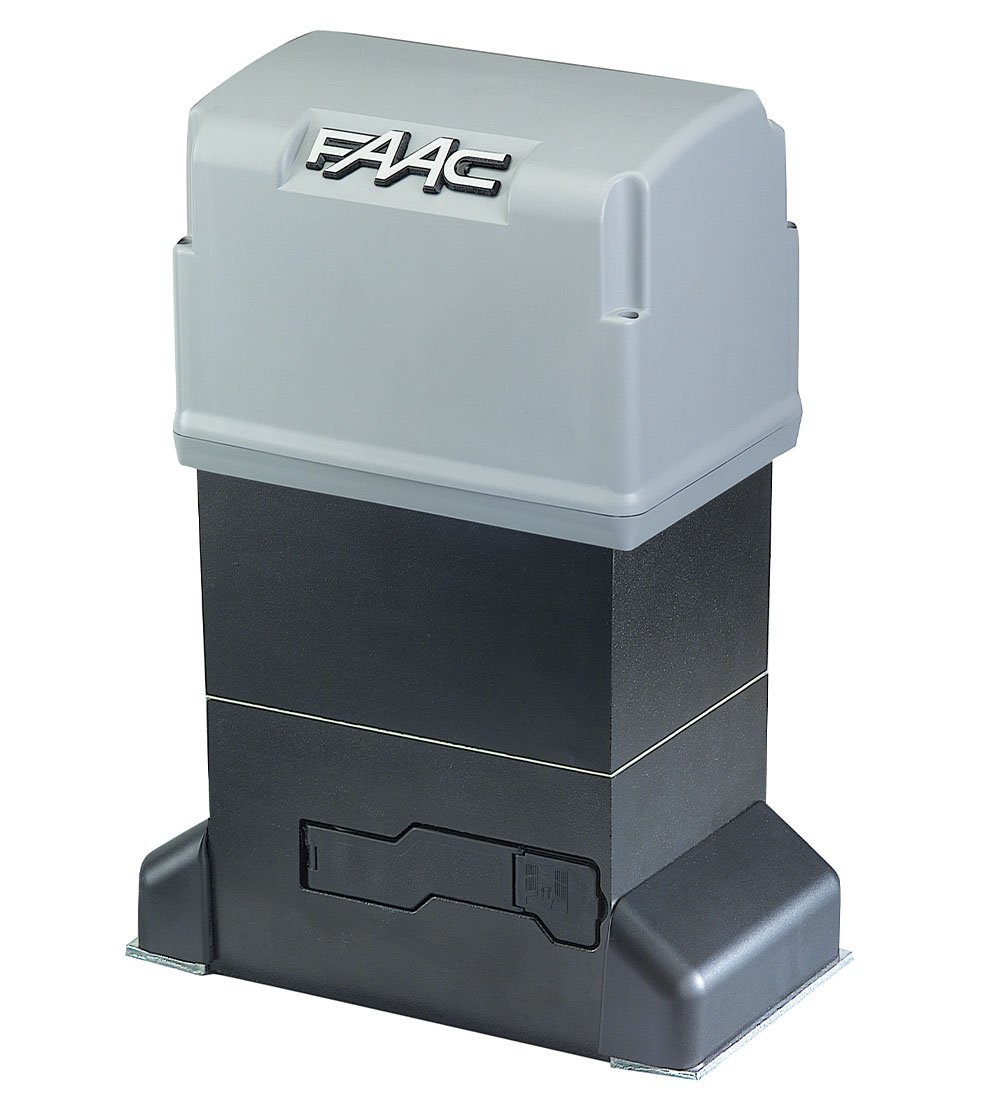

746 C & 844 C 230V Gearmotors

Renewed gearmotors with integrated E781S LC electronic control unit featuring adjustable speed control levels. Include two dedicated inputs for safety edges (NC or 8.2 KOhm) and Bus2Easy technology.
New high-performance retroactive feedback motor control with high-resolution encoder: smoother acceleration and deceleration ramp, force optimization, reduced consumption, adjustable sensitivity to obstacle detection.
Compatible with the Simply Connect platform and with the new FDS radio technology.
Integrated Low Consumption Functionality in Standby Mode: The control unit is designed with low power standby (LC) functionality, in compliance with the Ecodesign Directive 2009/125/EC and EU Regulation 2023/826. The low-power mode can be easily enabled or disabled via the board’s menu. If enabled, it activates automatically after a few minutes of inactivity, reducing standby power consumption (<0.5W, or 2W if connected to Simply Connect). This ensures energy efficiency, reduced operating costs and a positive environmental impact.

Max leaf weight 400 - 600 Kg (746 C) / 1.800 Kg (844 C)
Max single leaf width 40-50 m (746 C) / 40 m (844 C)
Max speed 9.6 - 12 m/min (746 C) and 9.6 m/min (844 C)
Use frequency Continuous use

Technical description Download

Innovation symbols 6

Gallery / Video

Watch the product video: 746 C and 844 C

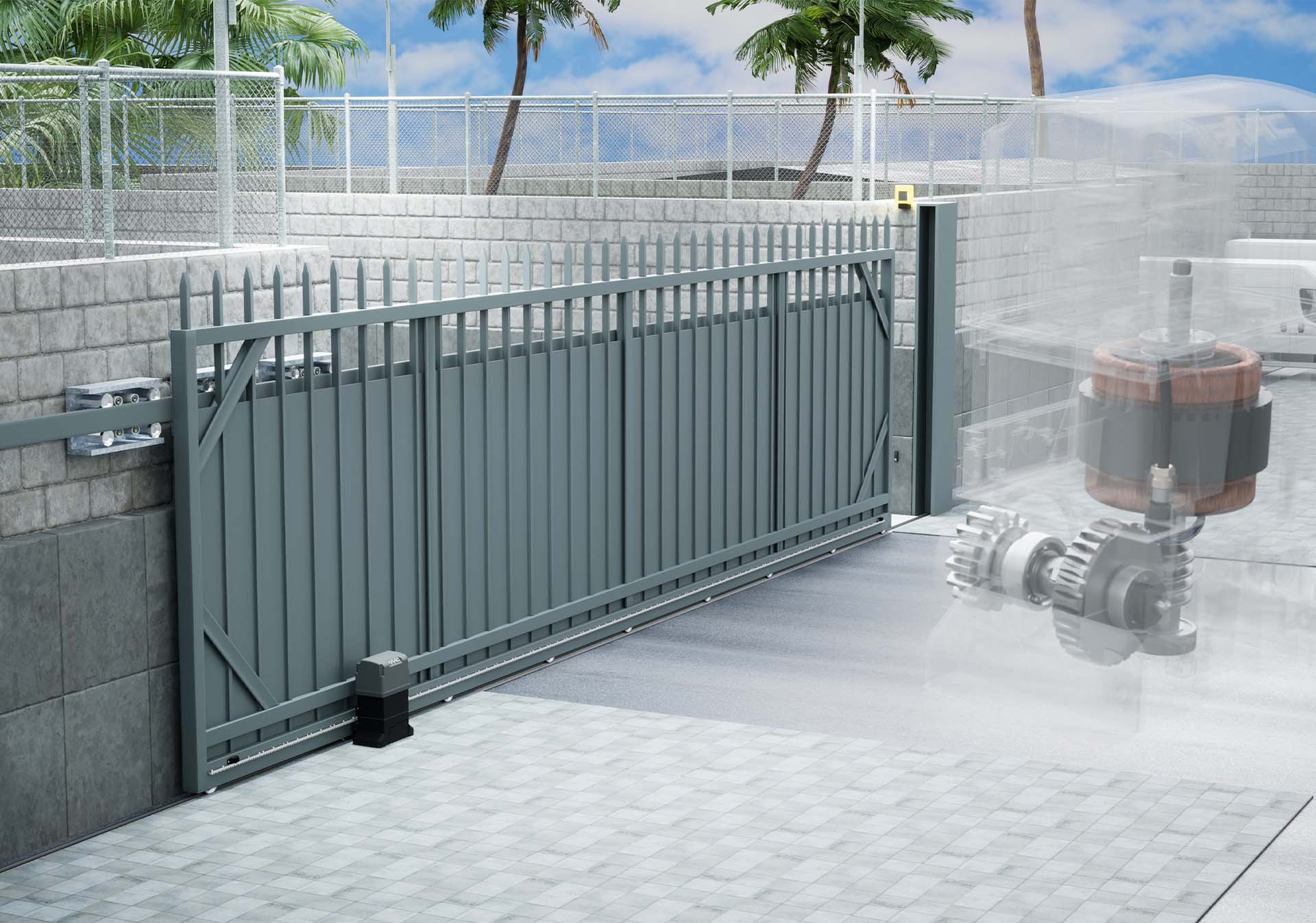

FAAC 746 C and 844 C Sliding Gate Gearmotors

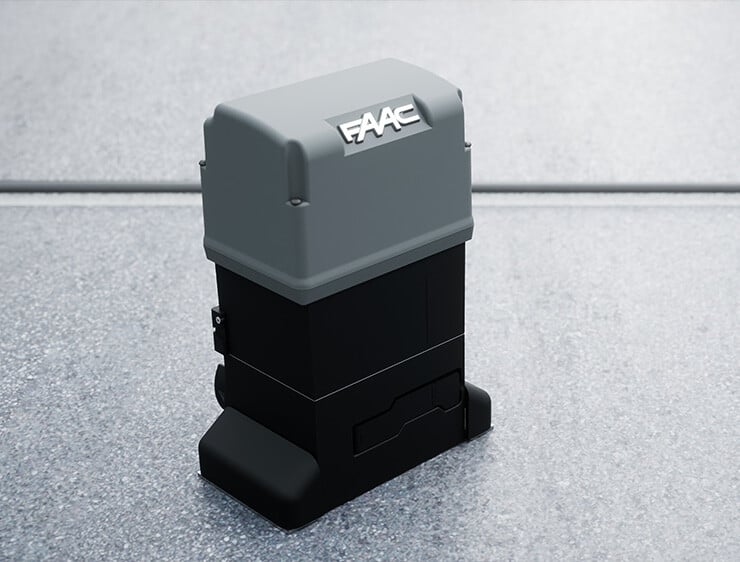

Focus on 746 C & 844 C Sliding Gate Gearmotors

Oil bath technology

• Silent movement. The very essence of oil bath technology. Quiet and efficient, oil bath technology provides superior motion.

• Intensive use. Oil lubricated for efficient heat dissipation and increased use frequency.

• Extended service life. The lubricating action of the oil reduces friction between the components, ensuring a reliable automation, with a long service life and consistent performance over time.

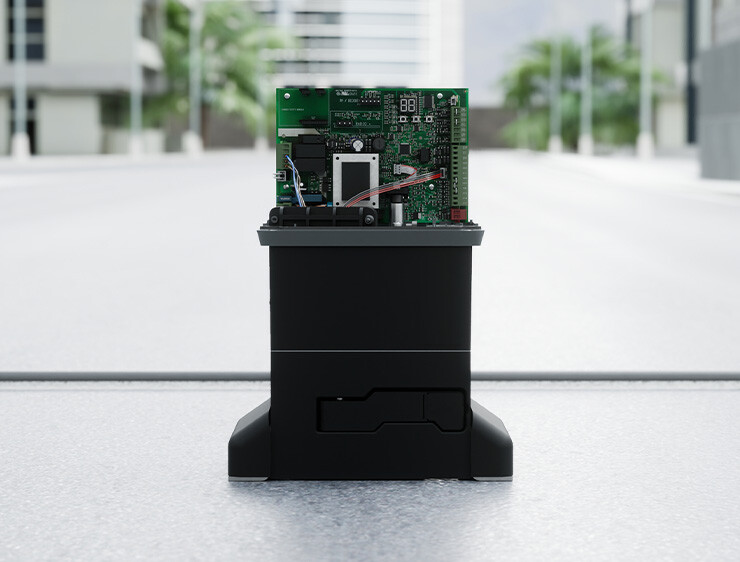

E781S LC: New board, greater compatibility

The E781S LC integrates a wide range of technologies and innovations to maximize the compatibility of the gearmotors with the FAAC product range.

Programming via display and buttons, numerous configurable parameters, two independent inputs for safety edges and two programmable outputs.

Technical information

Product information 746 C & 844 C

01

Technical description

NB: If you’re viewing this section on a phone, swipe/scroll the table horizontally or rotate your device to landscape to see all columns and get the best experience.

Data referred to 230 V~ @50 Hz

Parameter	746 C Z16	746 C Z20
Power supply voltage	220–240 V~ @50/60 Hz
Max power	350 W	350 W
Pinion	Z16 Module 4	Z20 Module 4
Max torque at initial thrust	466 N	372 N
Max thrust force	830 N	665 N
Max leaf weight	600 kg	400 kg
Max leaf speed	9.6 m/min	12 m/min
Max leaf length	40 m	50 m
Stopping space	30 mm
Type of use	Industrial/Commercial/Residential
Use frequency	Continuous use
Protection rating	IP44
Ambient operating temperature	−20 °C – +55 °C
Thrust capacitor	12.5 µF
Thermal protection	120 °C automatic rearming
Sound pressure (LpA)	≤ 70 dB(A)
Oil	supplied by FAAC
Gearmotor weight	16.2 kg	16.5 kg
Item code	109745	109746

Parameter	844 C Z16
Power supply voltage	220–240 V~ @50/60 Hz
Max power	680 W
Pinion	Z16 Module 4
Max torque at initial thrust	606 N
Max thrust force	1300 N
Max leaf weight	1800 kg
Max leaf speed	9.6 m/min
Max leaf length	40 m
Stopping space	30 mm
Type of use	Industrial/Commercial/Residential
Use frequency	Continuous use
Protection rating	IP44
Ambient operating temperature	−20 °C – +55 °C
Thrust capacitor	18 µF
Thermal protection	120 °C automatic rearming
Sound pressure (LpA)	≤ 70 dB(A)
Oil	supplied by FAAC
Gearmotor weight	16.9 kg
Item code	109925
